18-24ft: Diameter

1500m²: Coverage

0-60rpm: Speed

1.5kw: Motor

Our Fans

Crane Fan Eagle Fan Crab Fan Crab.X3 Fan Buck Fan

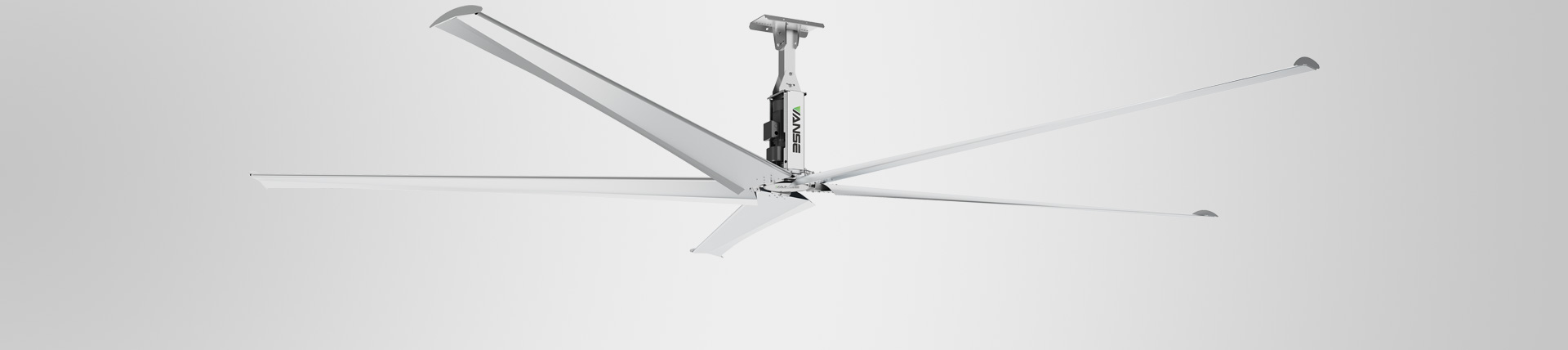

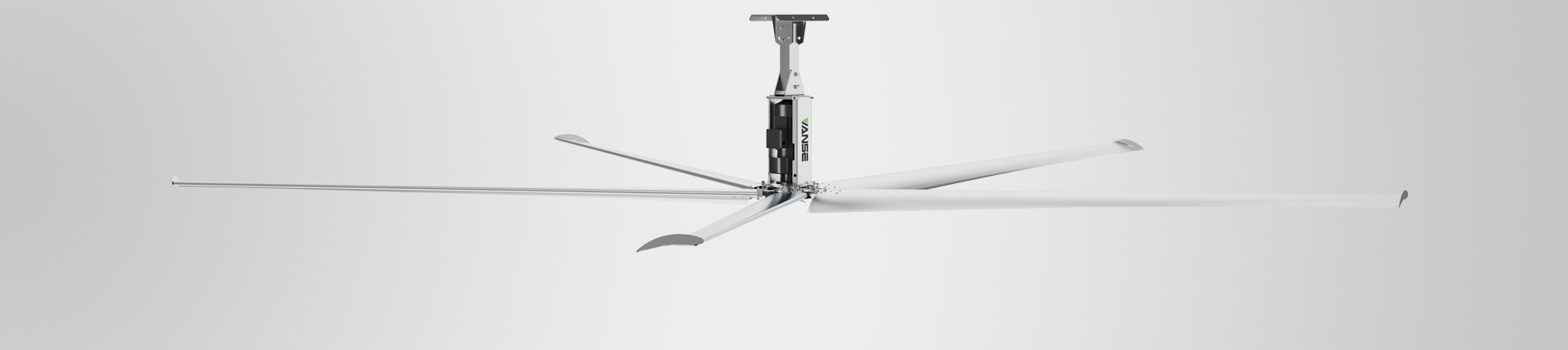

Eagle Fan

Get A Quote

Eagle of Vanse, as the earliest generation of HVLS fan, has been selling well in the market for more than ten years.
Eagle HVLS fan is equipped with reduction motor from German, with large torque force and air volume, complete machine safety protection. All accessories meet industrial standards and are suitable for various occasions, including harsh occasions.

Features

• Standard universal mounting frame, compatible with most common building structures.
• Torque up to 240nm, resulting in easier and stable large air volume output.
• The petiole is flexibly connected to release high-frequency vibration, and there is no metal fatigue during long-term operation.
• Comply with CCC, CE, UL and other international standards, and key components pass safety testing.
• Meet the requirements of industrial grade safety products and can operate stably in harsh and severe environment for a long time.

Components

Power
Connection
Blade
Controller

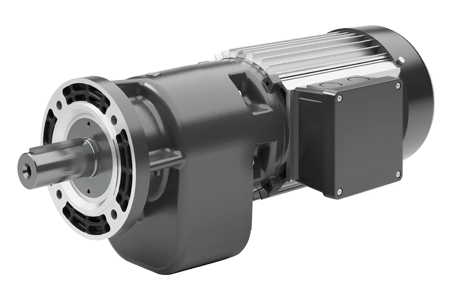

NORD or equal gear motor

A. Low gear gap assembly process, gear grinding process, low noise.
B. Strengthen the bearing frame structure, trapezoid out of the shaft structure, strengthen the body structure, more safety.
C. Get CCC、CE、UL certification.
D. No vibration, silence, free maintenance.

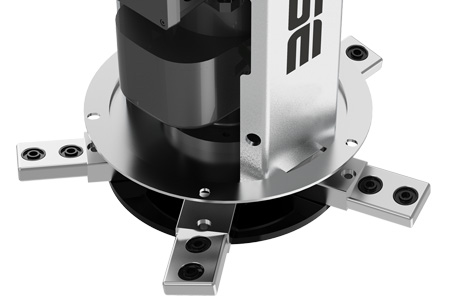

Structural connection system *patent

A. Petiole and chassis are connected by trapezoidal ladder clamping groove, and the structure is stressed as a whole without the risk of bolt fracture.
B. Petiole and blade adopt flexible shock absorber to release high-frequency vibration and ensure that the bolts are not impacted.

Variable cross-section streamlined blade *patent

A. 5 pieces of 1.5mm thick 5052 aero-grade aluminum plate are adopted, which can withstand more than 3 tons of tension and will not crack when impact.
B. Variable cross-section streamlined blade: fan blade gradually narrows from root to tip and thins to the tail then widens,wind resistance is small, air volume is more uniform.

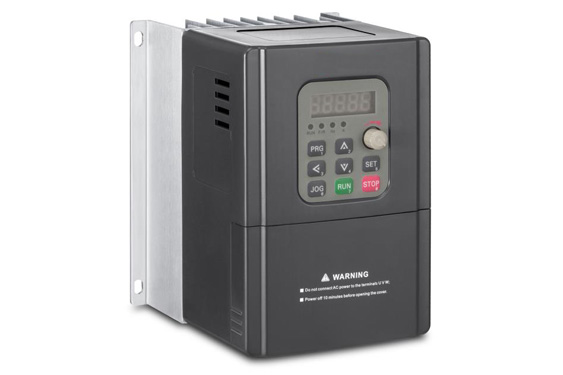

Vector converter

A. Start steady: Motor vector algorithm and current suppression to achieve.
B. No noise: Up to 16KHZ, no noise during speed up, slow down, and running.
C. Failure protection: 25fail-safe protections (over current,over voltage,under voltage phase loss,overload,etc.).

Parameters

Diameter	Max Speed	Air Volume	Coverage Radius	Coverage	Decibels	weight	Motor Power	Input Power
7.3m (24ft)	55rpm	14130m³/min	22m (72ft)	1519㎡ (16350ft²)	55dBA	100.8kg (222lb)	1.5kw (2.0hp)	3.4A/380V
6.7m (22ft)	60rpm	13022m³/min	21m (68ft)	1384㎡ (14890ft²)	55dBA	97.3kg (215lb)	1.5kw (2.0hp)	3.4A/380V
6.1m (20ft)	65rpm	11960m³/min	19m (62ft)	1133㎡ (12190ft²)	55dBA	94.8kg (208lb)	1.5kw (2.0hp)	3.4A/380V
5.5m (18ft)	70rpm	9970m³/min	17m (55ft)	907㎡ (9760ft²)	55dBA	92.3kg (204lb)	1.5kw (2.0hp)	3.4A/380V

* Air volume, coverage, decibels, etc. are tested in the laboratory , and the actual use shall prevail.
* Size: the above are products with standard size, and other specifications can be customized.
* Weight: the weight does not include control box, connecting parts, steel wire rope, etc.
* Power supply: three-phase or single-phase can be selected, and can be customized.
