4ft: Diameter

500m²: Coverage

440rpm: Speed

0.6kw: Motor

Our Fans

Crane Fan Eagle Fan Crab Fan Crab.X3 Fan Buck Fan

Crab.X3 Fan

Get A Quote

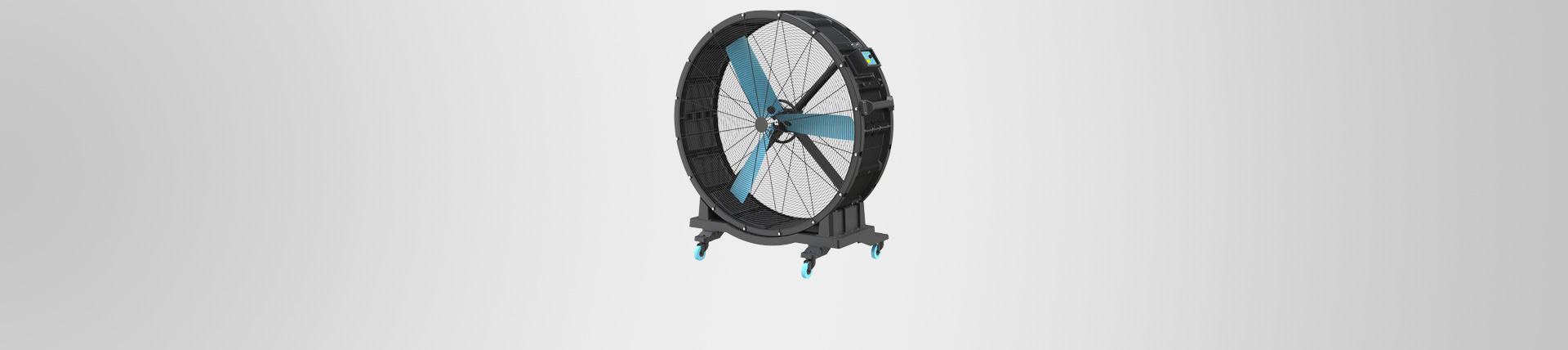

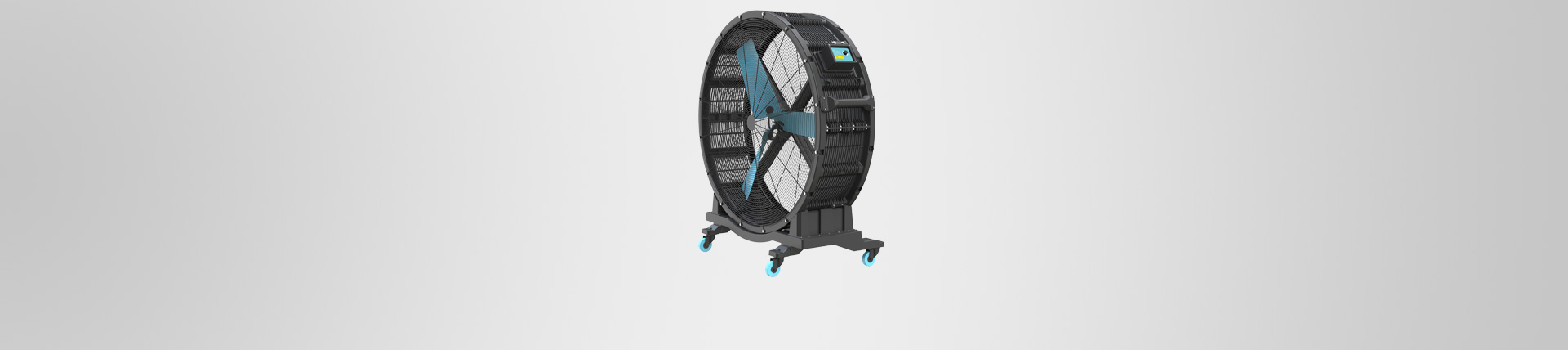

The Crab.X3 of Vanse is a mobile large industrial floor fan, with ultra-wide-angle air supply can supply air over 40m, bringing the cooling effect equivalent to more than 30 units small fans. The heavy duty floor fan with stable caster design, is convenient to move and fix at any time.

Features

• Four wheeled mobile design, easy access, suitable for flexible use in industry and commercial occasions.
• Made of blond reinforced PP material, precision CNC molding,higher strength and flexibility to ensure no breakage.
• The large industrial floor fans safety design of protective cover to avoid personal injury.

Components

Power
Controller
Blade
Components

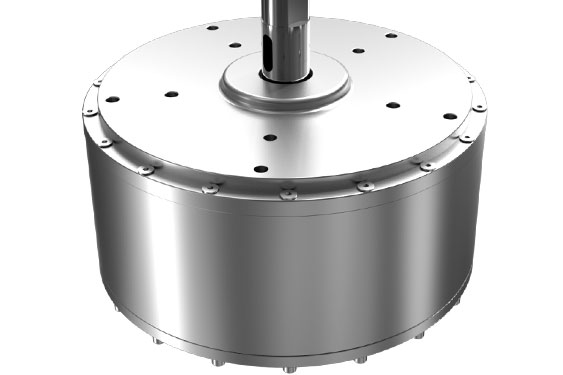

PMSM Motor

A. The motor starting performance is strong with the fast of Chip's computing speed.
B. FOC motor control algorithm that making the motor noise is less 40% than normal motor.
C. Accurate frequency adjustment and algorithm of real-time voltage compensation making the motor work more efficiently.
D. Fully enclosed, maintenance free, waterproof and dustproof.

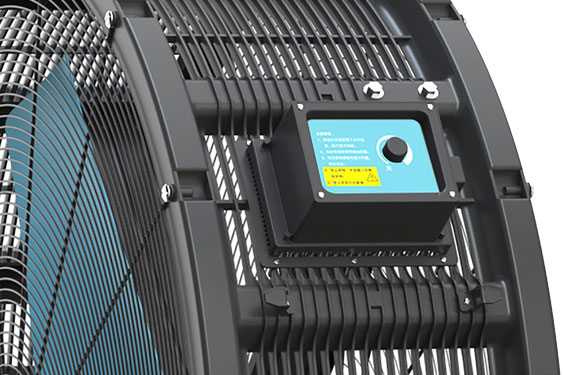

Vector converter

A. Start steady: Motor vector algorithm and current suppression to achieve.
B. No noise: Up to 16KHZ, no noise during the large floor fan speed up, slow down, and running.
C. Failure protection: 25 fail-safe protections (over current,over voltage,under voltage phase loss,overload,etc.).

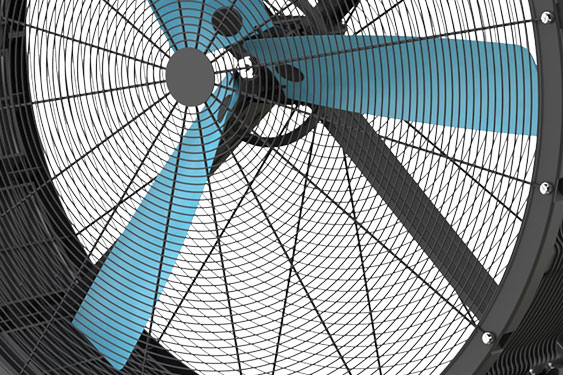

Reinforced PP fan blade

The large industrial fan blade made of reinforced PP material, precision CNC molding, higher strength and flexibility to ensure no breakage, and can withstand harsh working environment.

Protective Cover
Safety design of protective cover to avoid personal injury by the commercial floor fans.

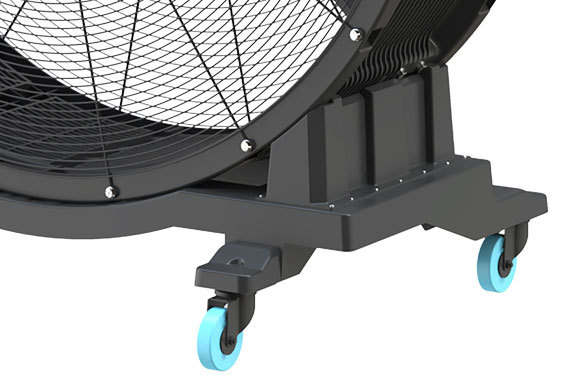

Caster wheel
The 4 casters with side brakes can move freely, adapting to the changing needs of industry and commercial workplaces.

Parameters

SPEC	04FT
Blade Diameter	1.25m (48 inch)
Motor	PMSM Motor
Blade Materials	Reinforced PP
Protective Cover	Iron
Speed	440rpm/min
Volume	38000m³/h
Blower Distance	35~40m
Application Area	400~500㎡
Weight	60kg
Power	600W
Voltage	220V/50Hz
Dimension	15107901680mm
