8-12ft: Diameter

50m²: Coverage

0-90rpm: Speed

0.5kw: Motor

Our Fans

Crane Fan Eagle Fan Crab Fan Crab.X3 Fan Buck Fan

Buck Fan

Get A Quote

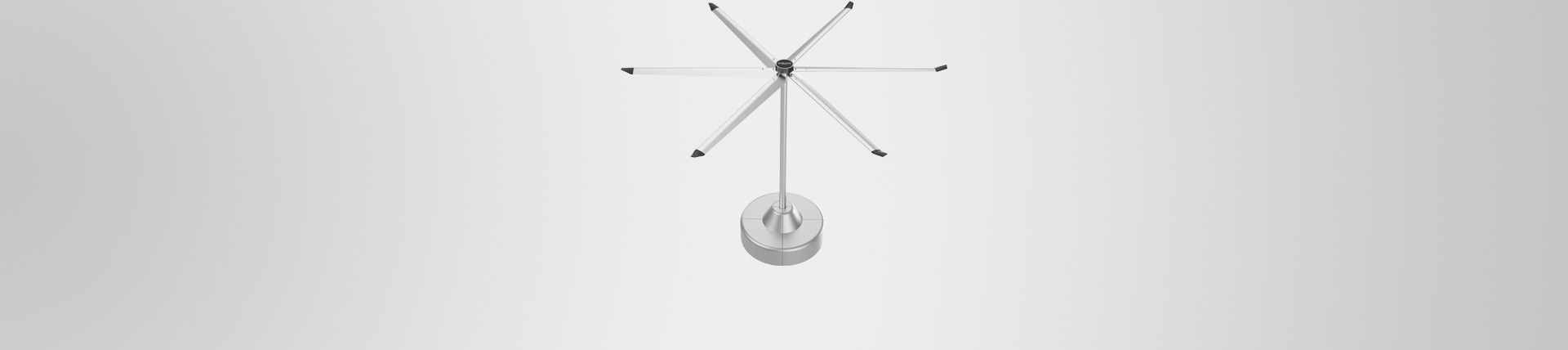

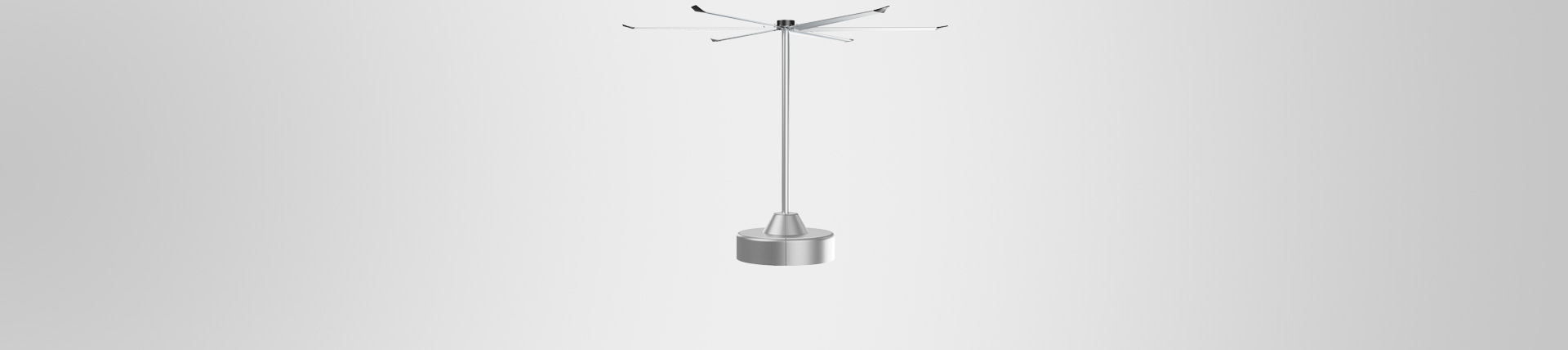

The Buck large fan of Vanse, is a ground column fan designed for the space where the top hanging installation cannot be adopted. It has both fashion and function, no shaking and noise, and brings more added value while solving the air flow in the space.

Features

• Suitable for indoor and outdoor occasions, easy loading and unloading.
• Waterproof and dustproof, PMSM motor, energy-saving, silent and maintenance free.
• Additional devices like LED lights, billboards, seats and monitoring can be added.
• Connected with the building management system for remote control.

Components

Power
Connection
Blade
Controller

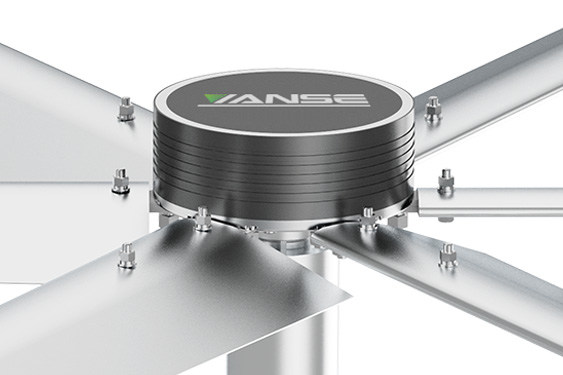

PMSM motor

A. Small size: 1/3 of geared motor, applicable for more places.
B. Low noise: Less 40% than geared motor.
C. Fully enclosed, maintenance free.

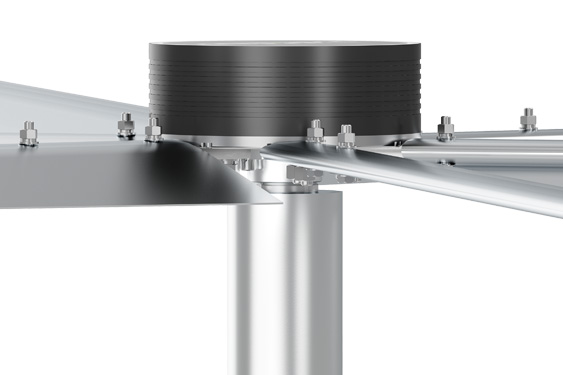

Stable positioning pull plate

The multi tail quick positioning pull plate is integrated with the motor stator shaft. Compared with the split pull plate, the steel wire rope can directly stabilize the motor shaft, prevent shaking and increase the dynamic balance stability of the fan.

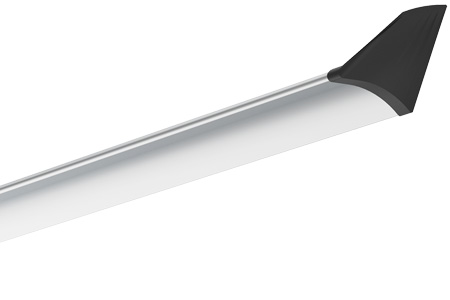

Balanced diversion winglet

The upward balanced diversion winglet is equipped with a wind breaking part, a diversion part and a rectifier part to effectively prevent the adverse effects of fan imbalance, air dispersion, fan blade deformation and so on.

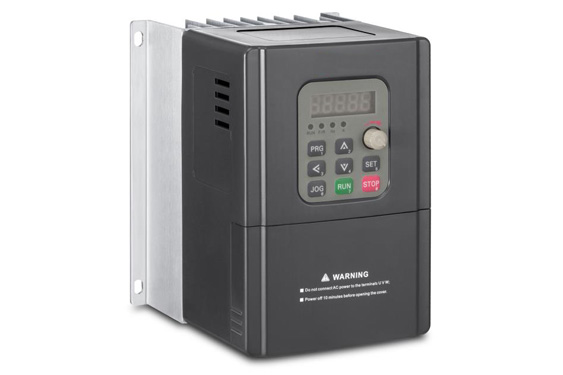

Vector converter

A. Start steady: Motor vector algorithm and current suppression to achieve.
B. No noise: Up to 16KHZ, no noise during speed up, slow down, and running.
C. Failure protection: 25 fail-safe protections (over current,over voltage,under voltage phase loss,overload,etc.).

Parameters

Diameter	Max Speed	Air volume	Coverage Radius	Coverage	Decibels	Weight	Motor Power	Input Power
3.6m (12ft)	90rpm	6560m³/min	4m (13ft)	50㎡ (538ft²)	39dba	42kg (93lb)	0.5kw (0.7hp)	2.3A/220V
3.0m (10ft)	100rpm	5530m³/min	3.5m (11ft)	40㎡ (430ft²)	39dba	38kg (83lb)	0.5kw (0.7hp)	2.3A/220V
2.4m (08ft)	110rpm	4550m³/min	3m (9ft)	30㎡ (320ft²)	39dba	34kg (74lb)	0.3kw (0.7hp)	1.4A/220V

* Air volume, coverage, decibels, etc. are tested in the laboratory , and the actual use shall prevail.
* Size: the above are products with standard size, and other specifications can be customized.
* Weight: the weight does not include control box, connecting parts, steel wire rope, etc.
* Power supply: three-phase or single-phase can be selected, and can be customized.
